Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed

Place of Origin : Guangdong, China

Brand Name : XPX

Supply Ability : 100 Piece/Pieces per Month

Price : $20,000.00 - $32,000.00/pieces

Model Number : VAN-360

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Condition : New

Type : Paper Cutting Machine

Automatic Grade : Automatic

Voltage : 380V

Weight : 5200kg

Warranty : 1year

After-sales Service Provided : Field installation, commissioning and training

Product name : VAN-360F High Speed Hot Stamping/ Flatbed Die Cutting

Application : Rotary die cutting machine

Model : VAN-360

Output Speed : 120M/MIN

NET weight : 4000kg

Max die cutting size : 350mm*370mm

Max width : 360mm

Package : wooden case

Power Supply : 380V 3 Phase 50/60Hz 35A

Application area : LABEL

Contact Now

VAN-360F High Speed Hot Stamping/ Flatbed Die Cutting/Laminating/Snow ball stripping/Slitting/Rewinding Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed

Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed

Model	VAN-360
Max feeding width	360mm
Max die cutting speed	120M/MIN
Max die cutting size	350mm*370mm
Die cutting precision	±0.1mm
Hot stamping precision	±0.1mm
Max Hot foil diameter	260mm
Hot foil feeding driection	0° /90°
Max hot foil rolls	8rolls
Heat temperature	0~200 ° C
Full rotary die cutting size	70-120teeth
Min slitting width	20mm
Max unwinding diameter/meter	700mm/2000M
Max rewinding diameter/meter	700mm/2000M
Air pressure Supply	0.4~0.6Mpa
Voltage/current	3 phase 380V
Total power	30KW
Machine size	320014001700mm

Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed

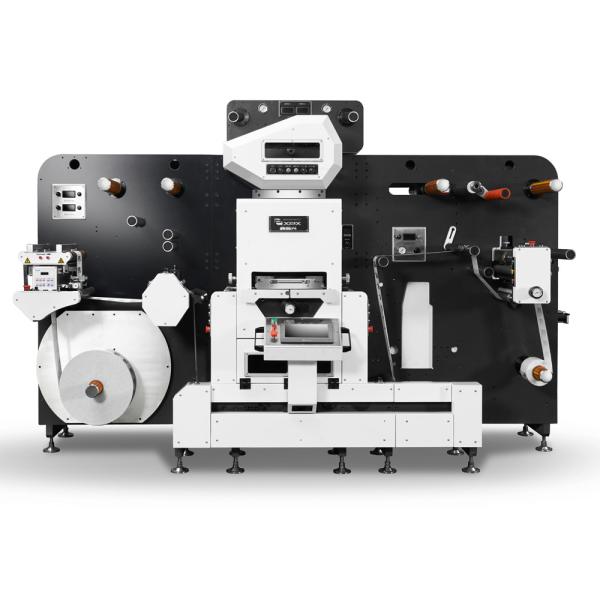

Flatbed Sticker Label Die Cutting Machine Hot Stamping High Speed Images
